KCT4521L

5GHz 低噪声放大器开关模组

产品介绍

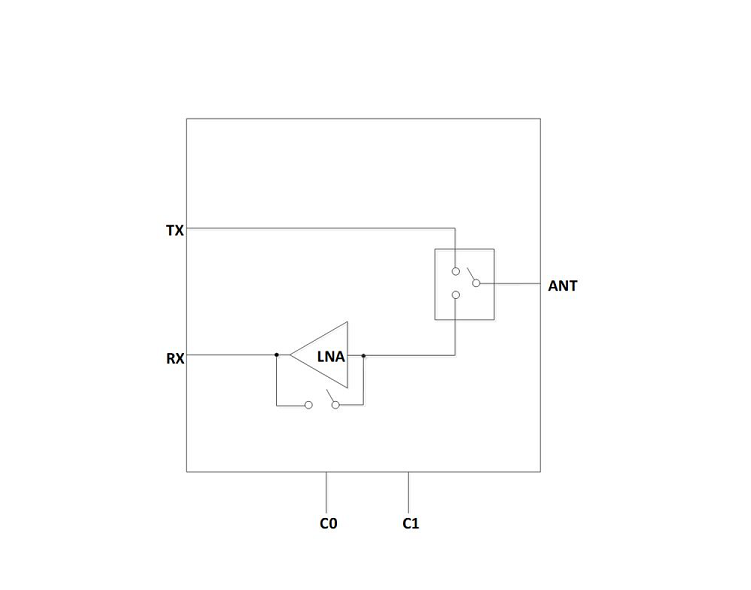

KCT4521L 是一款集成前端模块 (FEM)，专为在 5.15-5.85GHz 范围内运行的 IEEE 802.11a/n/ac WLAN 系统而设计。 KCT4521L 在一个器件中集成了带旁路的低噪声放大器 (LNA) 和单刀双掷 (SPDT) 开关。

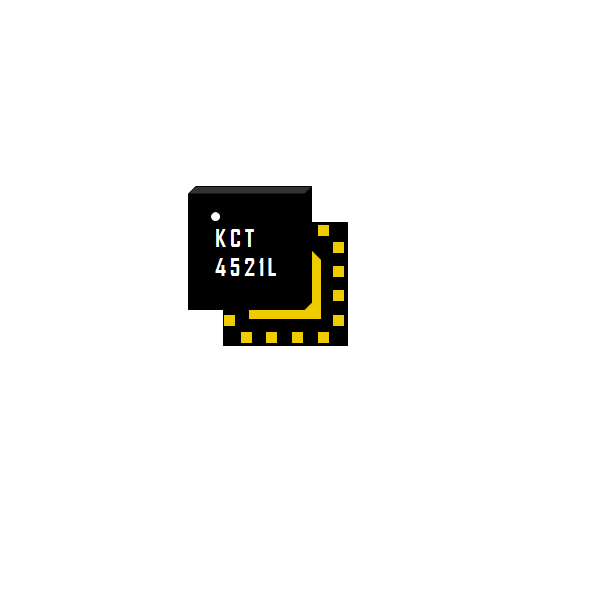

KCT4521L 采用紧凑、扁平的 2.3x2.3x0.5mm 16 引脚 QFN 封装。 KCT4521L 是实现 5GHz 高功率 WLAN 系统的理想射频前端解决方案，支持多种标准，包括 802.11a/n/ac。

KCT4521L is an integrated Front-End module (FEM) which is designed for IEEE 802.11a/n/ac WLAN systems operating in the 5.15-5.85GHz range. KCT4521L integrates a low noise amplifier (LNA) with bypass, and single-pole double-throw (SPDT) switch in one device.

KCT4521L is assembled in a compact, low-profile 2.3x2.3x0.5mm 16-pin QFN package. KCT4521L is the ideal RF front-end solution for implementing 5GHz highpower WLAN systems supporting multiple standards including 802.11a/n/ac.
