KCT8539SD-1
5GHz 802.11ax RF Front-End Module
产品介绍

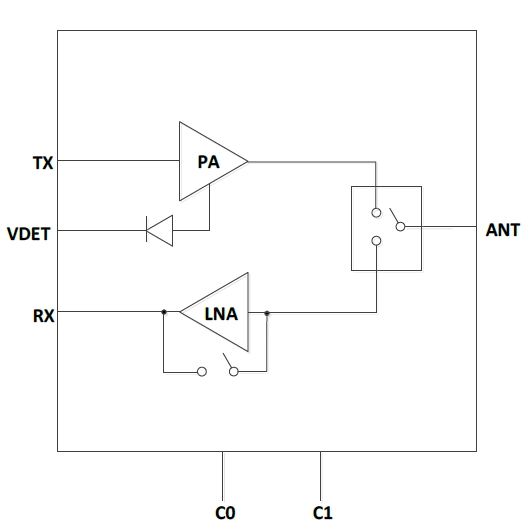

KCT8539SD-1 is a highly integrated RF Front-End Integrated Circuit incorporates key RF functionality needed for IEEE 802.11a/n/ac/ax WLAN systems operating in the 5.15-5.85GHz range. KCT8539SD-1 integrates a high-efficiency high-linearity power amplifier (PA), a low noise amplifier (LNA) with bypass, the associated matching network and harmonic filters all in one device.
KCT8539SD-1 has simple and low-voltage control logic and requires minimal external components. A power detector is also integrated to accurately monitor the output power of the PA.

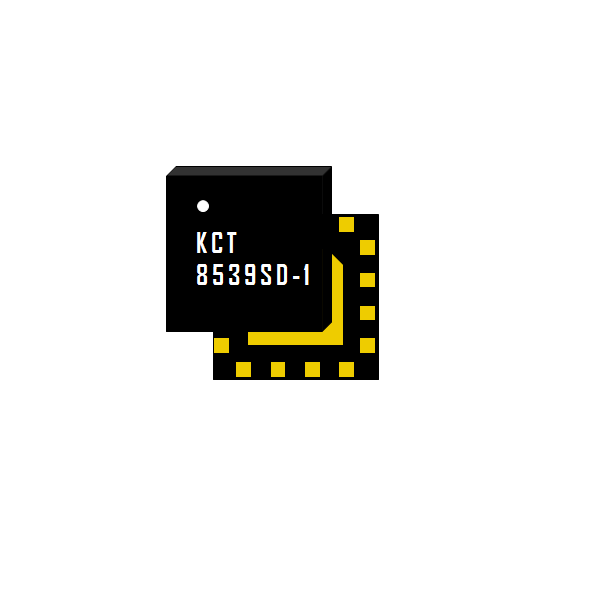

KCT8539SD-1 is assembled in a compact, low-profile 3x3x0.75mm 16-lead QFN package. KCT8539SD-1 is the ideal RF front-end solution for implementing 5GHz high-power WLAN systems supporting multiple standards including 802.11a/n/ac/ax.
产品规格
Integrated 802.11ax 5GHz PA, LNA with bypass and T/R switch
Fully-matched input and output
Integrated power detector
Transmit gain: 30.5dB at 5V
Receive gain: 13.5dB at 5V
Noise figure: 3.0dB at 5V
Output power:
+20.5dBm @ -43dB DEVM, HE160/MCS11, 5V
+22.0dBm @ -40dB DEVM, HE160/MCS11, 5V
+23.0dBm @ -35dB DEVM, VHT80/MCS9, 5V
+24.0dBm @ -30dB DEVM, HT20/MCS7, 5V
ESD protection circuitry on all PINs
Minimal external components required
Small package: QFN-16L 3mm x 3mm x 0.75mm (MSL3, 260℃ per JEDEC J-STD-020)
RoHS and REACH Compliant
