KCT8229D-1

2.4GHz 802.11ac RF Front-End Module

产品介绍

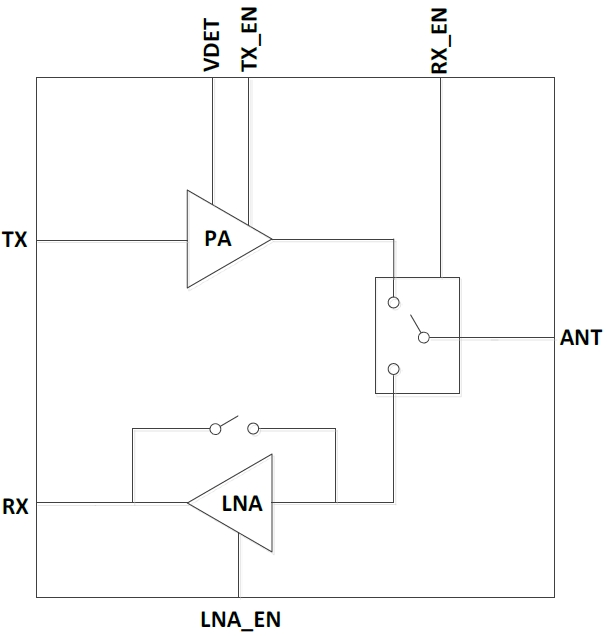

KCT8229D-1 is a fully integrated 802.11b/g/n/ac WLAN RF Front-end module (FEM) which incorporates key RF functionality. It is integrated with a high-efficiency power amplifier (PA), a low noise amplifier (LNA) with bypass, the associated matching network and Transmit / Receive (T/R) switch all in one device. The PA power detector and a digital enable control are also integrated.



KCT8229D-1 is assembled in a compact, low-profile 2.5×2.5×0.78mm 16-pin LGA package. It is the perfect RF Front-end solution for implementing 2.4GHz high-performance WLAN systems supporting multiple standards.
