KCT8529D
5GHz 802.11ac RF Front-End Module
Introduction

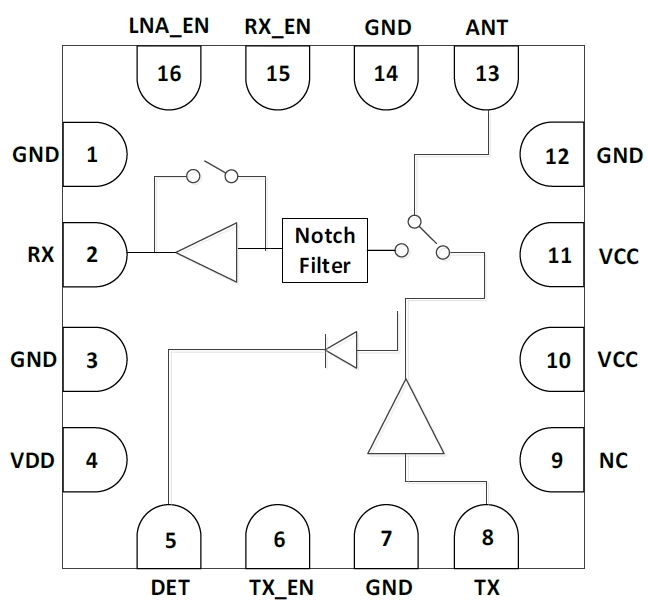

KCT8529D is a highly integrated RF Front-End Integrated Circuit incorporates key RF functionality needed for IEEE 802.11a/n/ac WLAN systems operating in the 5.15-5.85GHz range. KCT8529D integrates a high-linearity power amplifier (PA), a low noise amplifier (LNA) with bypass, the associated matching network, LO rejection, and harmonic filters all in one device.
KCT8529D has simple and low-voltage control logic, and requires minimal external components. A power detector is also integrated for accurate monitoring of output power from the PA.
KCT8529D is assembled in a compact, low-profile 2.5x2.5x0.55mm 16-lead QFN package. KCT8529D is the ideal RF front-end solution for implementing 5GHz high-power WLAN systems supporting multiple standards including 802.11a/n/ac.
Specifications
Integrated high performance 5GHz PA, LNA with bypass and T/R switch
Fully-matched input and output
Integrated power detector
Transmit gain: 31dB at 5V
Receive gain: 14dB at 5V
Output power:
+22dBm @ 1.8% DEVM, VHT80/MCS9, 5V
+23dBm @ 3% DEVM, HT20/MCS7, 5V
Integrated 2.4GHz Notch Filter
ESD protection circuitry on all PINs
Minimal external components required
Small package: QFN-16L 2.5mm x 2.5mm x 0.55mm (MSL3, 260℃ per JEDEC J-STD-020)
ROHS and REACH Compliant
